800MM 1000MM 1200MM 8500W chaser grooving trough Cutter groove Saw concrete electrical brick wall cutting machine
Insert Time：2022-11-16 14:11:06
Overview
Essential details

  • Customized support:

  • OEM, ODM

  • Place of Origin:

  • China

  • Brand Name:

  • JATAC

  • Model Number:

  • JL-S800X JS-S1000X JS-S1200X

  • Saw Type:

  • Circular Saw

  • Application:

  • Brick Saw, Stone Saw, Tile Saw, Metal Saw, Other

  • Rated Voltage:

  • 220V

  • Rated Input Power:

  • 8500W

  • No-Load Speed:

  • 300 r/min

  • Frequency:

  • 50Hz

  • Blade Diameter:

  • 800mm 1000mm 1200mm

  • Max. Cutting Width:

  • 5mm

  • Max. Cutting Depth:

  • 32-52 cm

  • Weight:

  • 115kg 135kg 145kg

  • Power Source:

  • Electric

  • Product name:

  • Double energy power computer Wall Cutting Machine

  • Main engine:

  • 57cm*55cm*78cm

  • Protected hood:

  • 86cm*11cm*86cm

  • Guide rail:

  • 122cm*17cm*9cm

  • High:

  • 80cm,100cm,120cm

  • Certificate:

  • CE 3C Utility Patent

  • Service:

  • Offer OEM ODM

  • Applicationrange:

  • Wall Pillar Building Renovation Road Bridge and Railway

  • Walking rail:

  • 1200mm
Supply Ability

  • Supply Ability

  • 1000 Set/Sets per Month

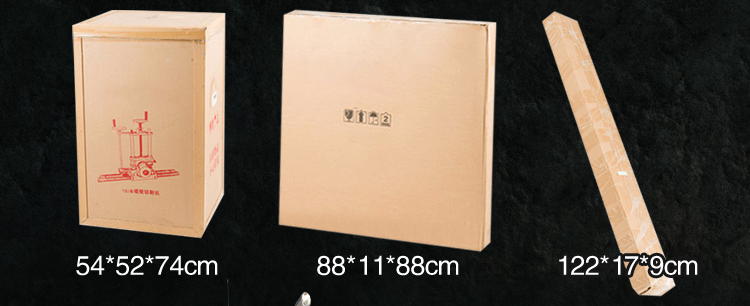

Packaging & delivery

  • Packaging Details

    • Wooden box +Carton

  • Port

    • Shanghai/Shenzhen

  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(sets)1 - 3>3
    Lead time (days)7To be negotiated
Video Description
00:00
01:15
00:00
00:39
Concrete Wall Cutter,Concrete Wall Saw, Wall Cutting Machine
Product Description
1. Stainless Steel Chuck Plate
Chuck plate with dewatering orifice made of steel could connected to the water pump to dedust.
2. Protected Hood
Used with stainless steel chuck, effectively prevent dust droplets, sewage splashing, and accidental occurrence of saw blade
operation.

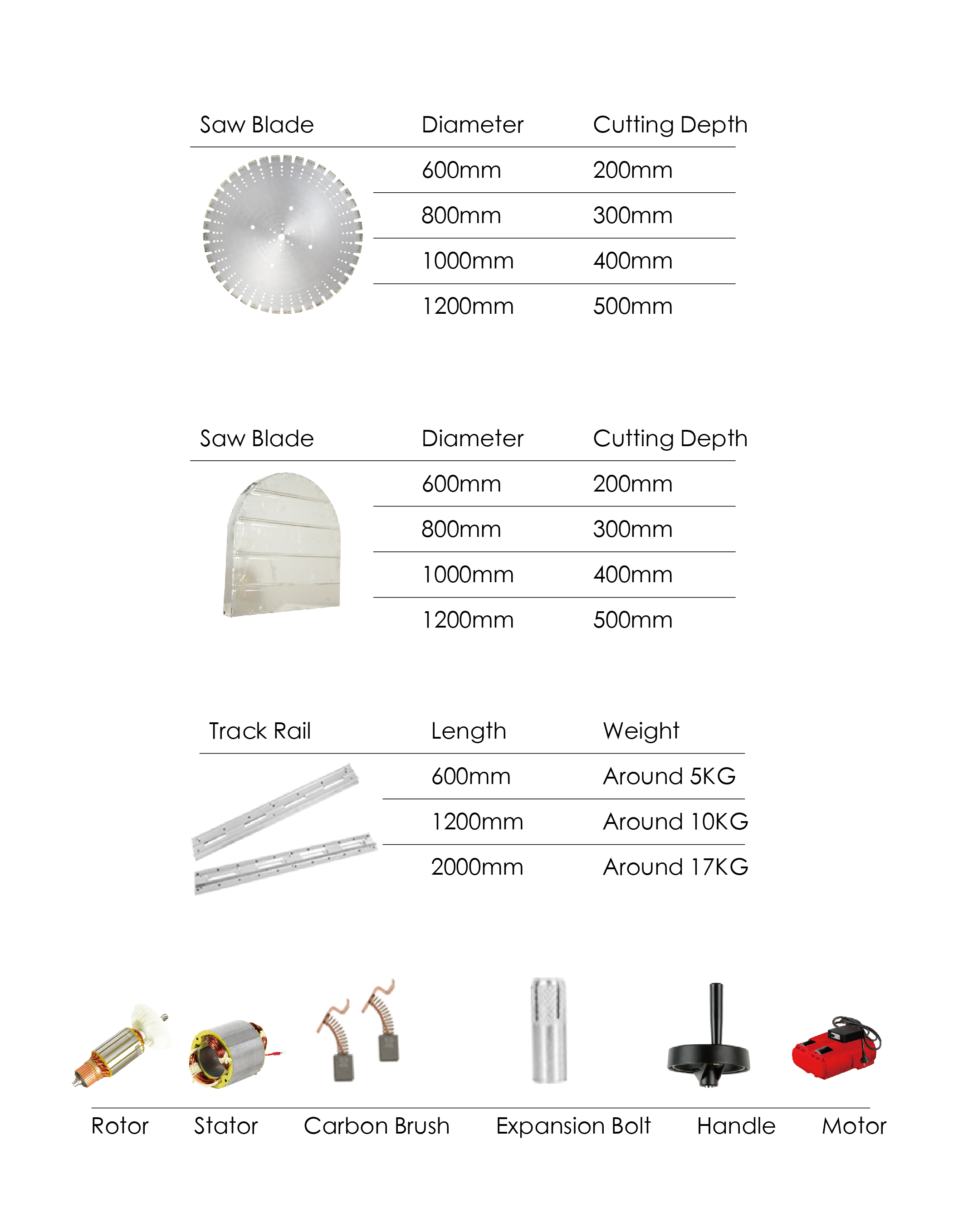

3. Diamond Saw Blade
Thicken steel sharp cutting head, durable, high strength, and uneasy to transform, suitable for granite, marble, high standard
concrete etc.
4. Twin Motor
Double industrial grade special motor with durable and stable output, more powerful horsepower and more efficiency.
5. Circuit Breaker
Automatic trip power off after overload, guarantee security. After tripping, it could be reused when the air switch closed again.
6. Labor-saving Hand Wheel
Aluminum wheel, more durable. Folding plastic handle, user-friendly design.
7. Steel Gear Track
Made of aviation grade aluminum, high density, light weight, easy to fix. The standard is 1.2m, 0.8~2.4m could be customized based on your demand.
8. Control Case
Showing voltage, power and electric current, easy to check. Could customize detachable base which could be fixed at different position of the steel gear track.
Contact us for more details!

Other Models:

If any more needs, please kindly click "Send Inquiry", we will be on service any time.
Model
Saw Blade Diameter
Rated Voltage
Rated Frequency
Input Power
Cutting Depth
JL-800A
800mm
110/220V
50-60Hz
6150W
300mm
JL-X800A
800mm
110/220V
50-60Hz
6150W
300mm
JL-1000A
1000mm
110/220V
50-60Hz
6450W
400mm
JL-X1000A
1000mm
110/220V
50-60Hz
6450W
400mm
JL-1200A
1200mm
110/220V
50-60Hz
6850W
500mm
JL-X1200A
1200mm
110/220V
50-60Hz
6850W
500mm
JL-S800 dual engine
800mm
110/220V
50-60Hz
8500W
300mm
JL-S800X dual engine
800mm
110/220V
50-60Hz
8500W
300mm
JL-S1000 dual engine
1000mm
110/220V
50-60Hz
8500W
400mm
JL-S1000X dual engine
1000mm
110/220V
50-60Hz
8500W
400mm
JL-S1200 dual engine
1200mm
110/220V
50-60Hz
8500W
500mm
JL-S1200X dual engine
1200mm
110/220V
50-60Hz
8500W
500mm
Home
Top Picks
Product Categories
Application Range
Applicable Projects

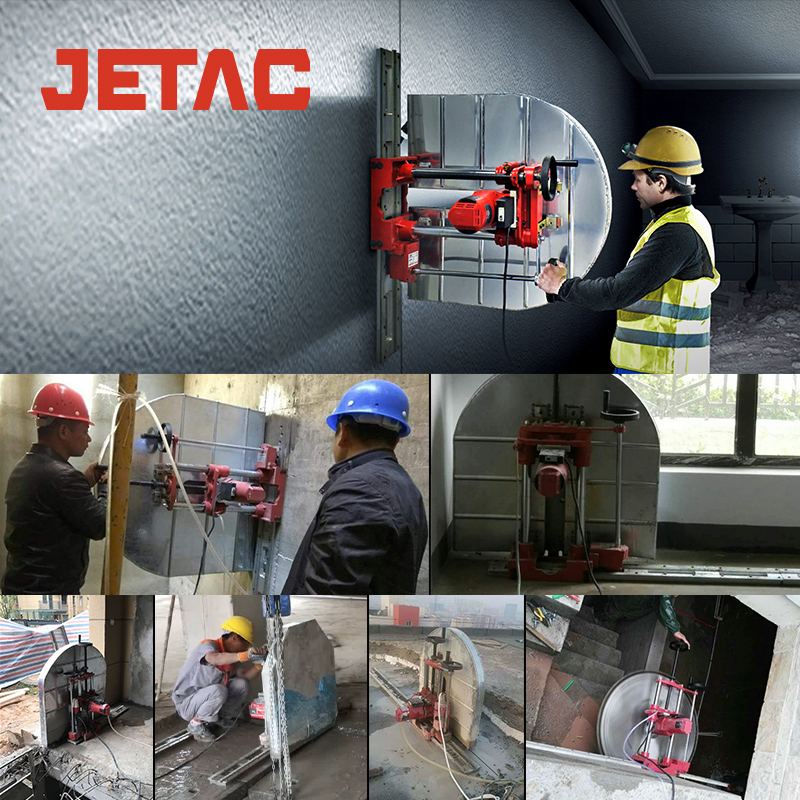

The cutting machine is suitable for reinforced concrete, mixed soil, brick wall, marble and other stone, wall cutting or surface slitting.
Contact us for more details!
Recommended Products
view more >>Related Products

China Electric Wall Cutter Tools Concrete Cutting Machine

$1,594.00 - $1,998.00 / set

1 set

6850W electrical Cutter water no dust Rebar brick wall aluminum groove Saw 1200mm Concrete wall cutting machine

$977.94 - $1,272.06 / set

1.0 set

Multifunction Reinforced Concrete Wall Saw Cutting Machine For Sale

$1,351.00 - $1,756.00 / set

1 set

800MM 1000MM 1200MM 8500W chaser grooving trough Cutter groove Saw concrete electrical brick wall cutting machine

$1,594.00 - $1,998.00 / set

1.0 set

Hand Operated Reinforced Concrete Wall Cutter Machine

$1,594.00 - $1,998.00 / set

1 set

High Quality Manual Control 400r min 6150W Dust Free Max Ripper Electric Tool Chaser Saw Concrete Wall Cutting Machine

$801.00 - $1,238.00 / set

1.0 set

6850W electrical Cutter water no dust Rebar brick wall aluminum groove Saw 1200mm Concrete wall cutting machine

$977.94 - $1,272.06 / set

1.0 set

Multifunction Reinforced Concrete Wall Saw Cutting Machine For Sale

$1,351.00 - $1,756.00 / set

1 set

Company Profile
Company Profile
Zhongshan Jielian Mechatronics Co., Ltd. was founded in 1997 with more than 20 years till now. Jetac is our trademark for overseas market. Jetac has been committed to the domestic market sales in the past few years, from 2019 we began to expand our overseas business, and now our products are already on the market in he United States, France, Republic of Croatia, Netherlands, Bulgaria, Bangladesh and so on. As a leading manufacturer and developer of hardware and electrical equipment and accessories in China, now we have 2 production centre and 5 large CNC processing centers, covering around 25 thousand square meters, with 300 employees, and 30 of them are technical R&D personnel. In addition to this, after continuous development, we also have national 3C certification, and a variety of patent certification such as  Reliable And Durable Dual Power Device, Transmission Device For Dual Power Motors, Convenient And Durable Cutting Device etc..Main BusinessThe main business of Jetac is producing, researching, developing and selling power saws and tools such like Magnetic Drill Machine, Diamond Core Drilling Machine, Diamond Concrete Wall Cutting Machine, Diamond Hydraulic Wire Saw Machine, Demolition Hammer, some electric tools etc. and also some fitting accessories.
Package & Shipping
FAQ
Q1: How long will it take to cut one meter length for dual engines?
A1: For your reference, around 15-20 minutes.
Q2: What’s the centre hole size of saw blade?
A2: 35mm.
Q3: How long could the machine be used?
A3: Normally speaking, around 7-8 year will be no problem.
Q4: How long could it cut for one saw blade?
A4: For your reference, it depends on different materials.
       If for brick wall, one saw blade could cut around 500 meters
       If for concrete wall, one saw blade could cut around 300 meters.
       If for concrete wall with steel, one saw blade could cut around 100 meters.
