2380W Portable Hand 160mm Diamond Concrete Core Drilling Cutting Machine

Insert Time：2022-10-19 17:58:09

Overview

Essential details

Place of Origin:
Jiangsu, China

Voltage:
220V

Model Number:
JLZ-160B

Weight:
15KG

Brand Name:
JETAC

Dimensions:
19CM*48CM*80CM

Drill Type:
Hand drill

Power Source:
Electric

Product name:
Portable Hand 110mm Diamond Concrete Core Drilling Cutting Machine

Water Seal:
No

Diameter:
160mm

Rated Power:
2380W

No Load Speed:
0~2000 r/min

Rated frequency:
50 HZ

Certificate:
CE/ 3C/ Utility Patent

Service:
Offer OEM / ODM

Packaging & delivery

Selling Units:
Single item

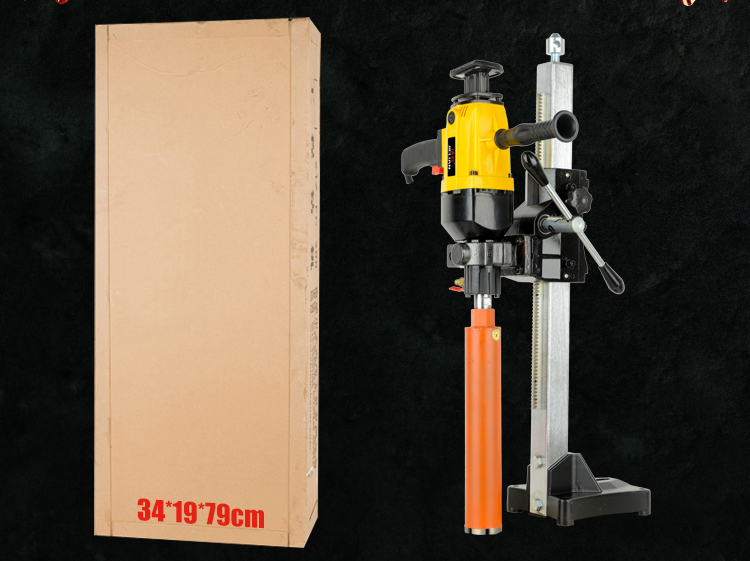

Single package size:
34X19X79 cm

Single gross weight:
18.000 kg

Package Type:
```
Wooden box +Carton
```

Lead time:
Quantity(sets) 1 - 5 6 - 100 >100
Lead time (days) 7 15 To be negotiated

00:00

00:29

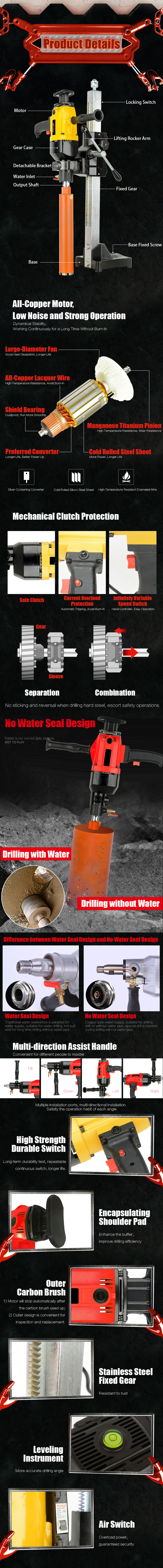

Product Description

Selling Points
The best combination of economy, light and simple, but 2380W powerful. Could be used on hand,also on vertical column. Easy assembly and disassemble, only need half past 4 minutes. Handle, shoulder rest, water source rustproof copper switch, fully equipped Optional 90 ° front and rear tilt adjustment base Optional adding two wheels on base, makes move the machine be more convenient Optional 180 ° left and right tilt adjustment base Standard Beijing M22 thread interface, optional 1-1 / 4-7, 1-1 / 4-3, etc. Diameter 32mm-400mm, length is 350mm、450mm-600mm, length is 450mm. Optional extension rod, length 20CM, 25CM and 30CM. Diameter 32mm-350mm, have stocks、400mm-600mm, pre-book, around 4 days to make it. High strength refined steel bearing, hardening gear, longer life-used. Mechanical clutch design, no throwing on tail,no hitting back.

Model: JLS-160A

Water Seal: No
Diameter: 160mm
Rated Voltage: 220V
Rated Power: 2380W
No Load Speed: 0~2000 r/min
G.W.: 6.2kg
Size	: 43*11*33cm

Model: JLS-160B

    Water Seal: No
    Diameter: 160mm
    Rated Voltage: 220V
    Rated Power: 2380W
    No Load Speed: 0~2000 r/min
    G.W.: 15kg
    Size: 19*48*80cm

Other Models: If any more needs, please kindly click  "Send Inquiry", we will be on service any time.

Model	JLS - 235C	JLS - 255C	JLS - 300C	JLS - 350C
Rated Power	4200W	4550W	5150W	5500W
Rated Voltage	220V	220V	220V	220V
Rated Frequency	50 HZ	50 HZ	50 HZ	50 HZ
No Load Speed	880 r/min	850 r/min	780 r/min	750 r/min
Diameter	235mm	255mm	300mm	350mm
G.W.	22kg	22kg	23kg	23kg

Package & Shipping

Mode of Shipment	By Courier/ Air	By Air/ Sea
Lead Time	3~7 Days	3~7 Days; 30 Days to Europe/ USA/ Canada; 5~15 Days to Southeast Asia;
Door to door delivery carrier including DHL, Fedex, EMS, UPS, TNT etc.

Company Profile

Wlecome to JETAC

Zhongshan Jielian Mechatronics Co., Ltd. was founded in 1997 with more than 20 years till now. Jetac is our trademark for overseas market.
Jetac has been committed to the domestic market sales in the past few years, from 2019 we began to expand our overseas business, and now our products are already on the market in he United States, France, Republic of Croatia, Netherlands, Bulgaria, Bangladesh and so on.
As a leading manufacturer and developer of hardware and electrical equipment and accessories in China, now we have 2 production centre and 5 large CNC processing centers, covering around 25 thousand square meters, with 300 employees, and 30 of them are technical R&D personnel. In addition to this, after continuous development, we also have national 3C certification, and a variety of patent certification such as  Reliable And Durable Dual Power Device, Transmission Device For Dual Power Motors, Convenient And Durable Cutting Device etc..
Main Business
The main business of Jetac is producing, researching, developing and selling power saws and tools such like Magnetic Drill Machine, Diamond Core Drilling Machine, Diamond Concrete Wall Cutting Machine, Diamond Hydraulic Wire Saw Machine, Demolition Hammer, some electric tools etc. and also some fitting accessories.
