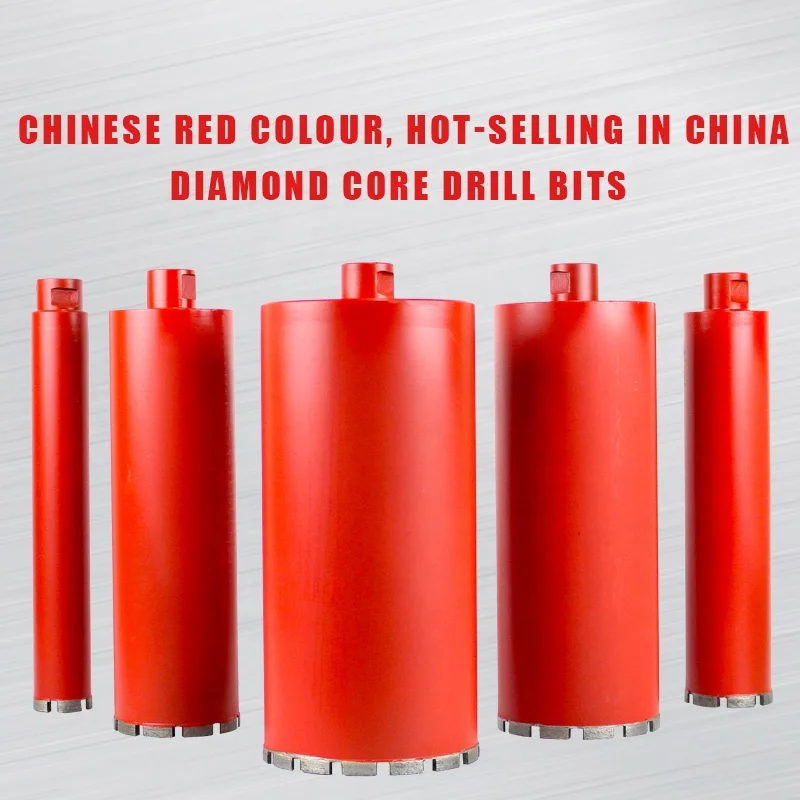

JETAC Diamond Core Drill Bit for Reinforced Concrete 32/76/102/120/159mm CE/3C Certified
Insert Time：2026-03-11 17:17:44


Key attributes

use

Metal Drilling

drill type

Core Drill Bit

Total Length

350-450mm

finish

Other

customized support

OEM, ODM

place of origin

Jiangsu, China

brand name

JETAC

Product name

32/76/102/120/159mm Diamond Core Drill Bit For Reinforced Concrete

Package

Carton box

Service

Offer OEM / ODM

Certificate

CE/ 3C/ Utility Patent

Packaging and delivery

Selling Units

Single item


Product Description

φ25

DN15

φ32

DN20

φ40

DN25

φ56-63

1P-2P Tube On Air Condition And Bathroom



φ76

2P-5P Tube On Air Condition Cabinet

φ120

Pipe For Sewage And Firefighting

φ168

Pipe For Range Hood

φ180

Pipe For Imported Range Hood

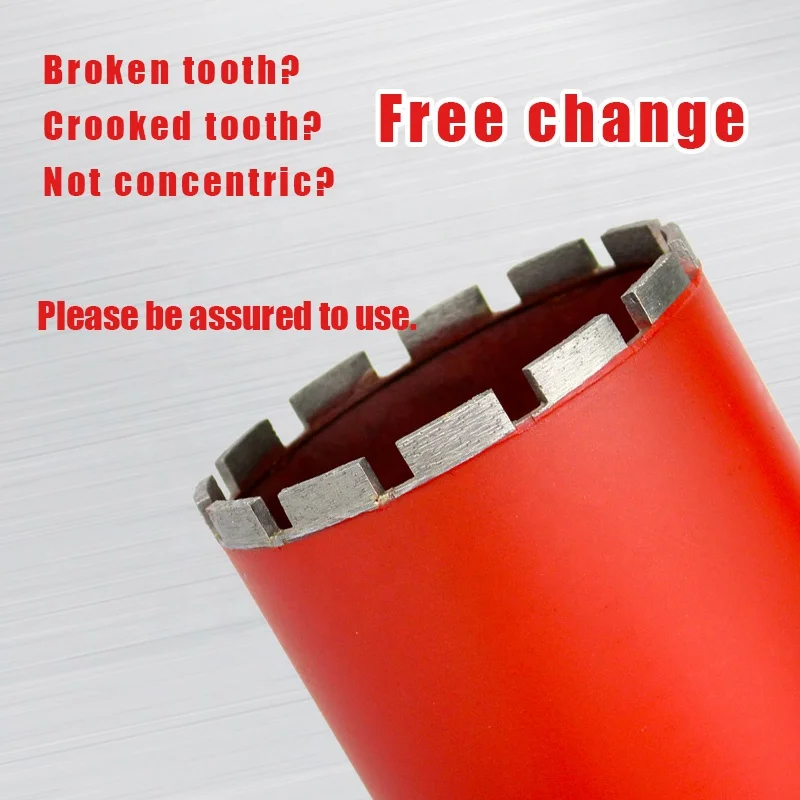

1. New Tooth-------More Sharp, Capacity Could Be 50 Of Holes

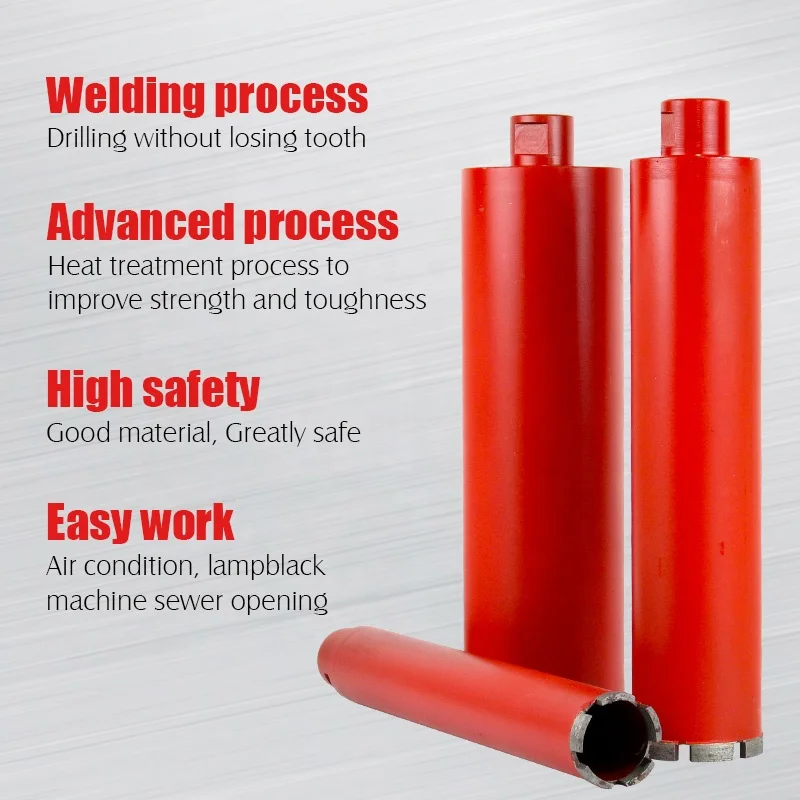

2. Strong Wear Resistance Of 360 Degree Seamless Steel Pipe

3. The Tail And Head Formed In One Piece-------No Deformation

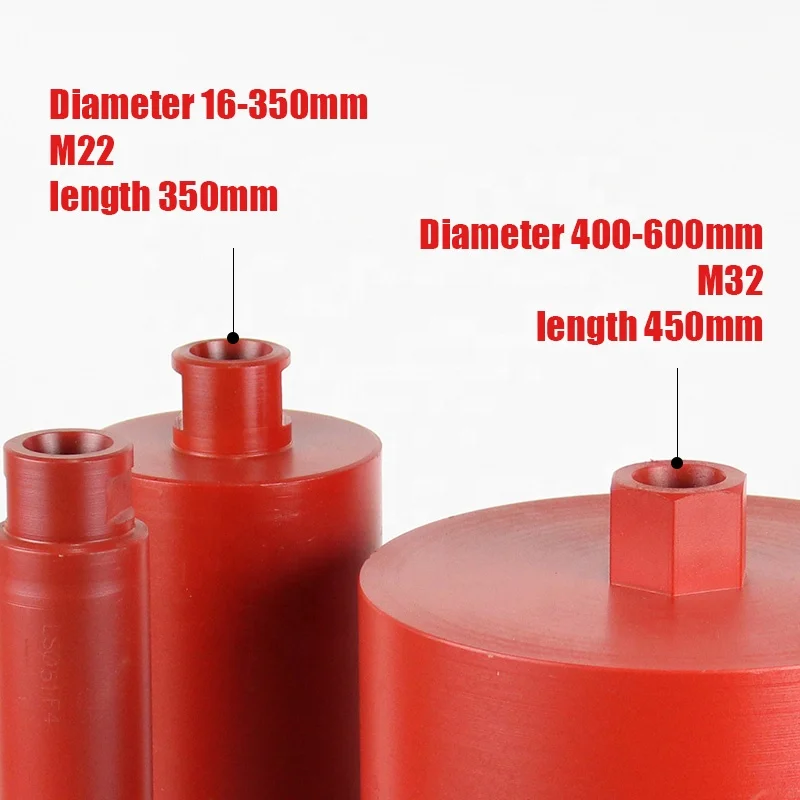

4. Standard Hexagonal Connector---------M22mm Prevail In Market

5. Variety Size Of Head---------Meet Any Needs In Market

6. Seamless Steel Pipe-------65 Manganese

Size L*H

Size L*H

16*350

89*350

18*350

96*350

20*350

102*350

22*350

108*350

24*350

114*350

25*350

120*350

27*350

127*350

28*350

132*350

30*350

140*350

32*350

152*350

36*350

159*350

38*350

168*350

40*350

180*350

44*350

200*350

46*350

219*350

51*350

245*350

56*350

254*350

63*350

270*350

66*350

273*350

71*350

300*350

76*350

350*350

83*350

400*350

extension rod

Variable wire connector

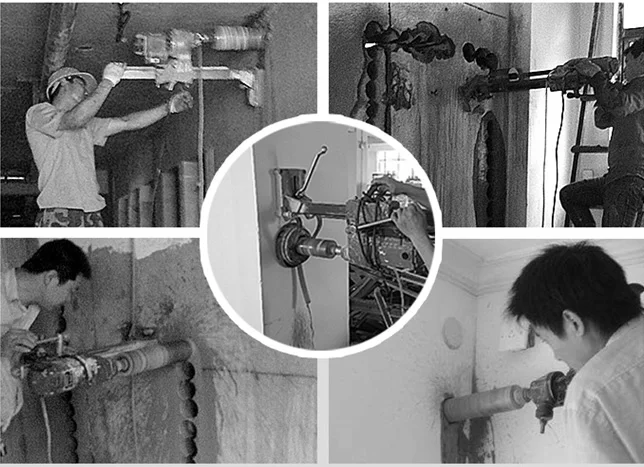

Could Be Used On Drilling Hole、Banister、Street Lamp、Heating And Viaduc

Installation Tips:

1.Diamond Core Drilling Bits: It Must Be Added Water When Used, Suggesting To Drill and Core, also Advise To Be Equipped With Stand.

2.Installing The Drill Bits: Firstly Please Check If There Are Swing On Shaft And If Machine Parts Are Normal.Pls Make Sure To Tighten The Bits And Machine.


If any more needs, please kindly click "Send Inquiry", we will be on service any time.

Application Range
