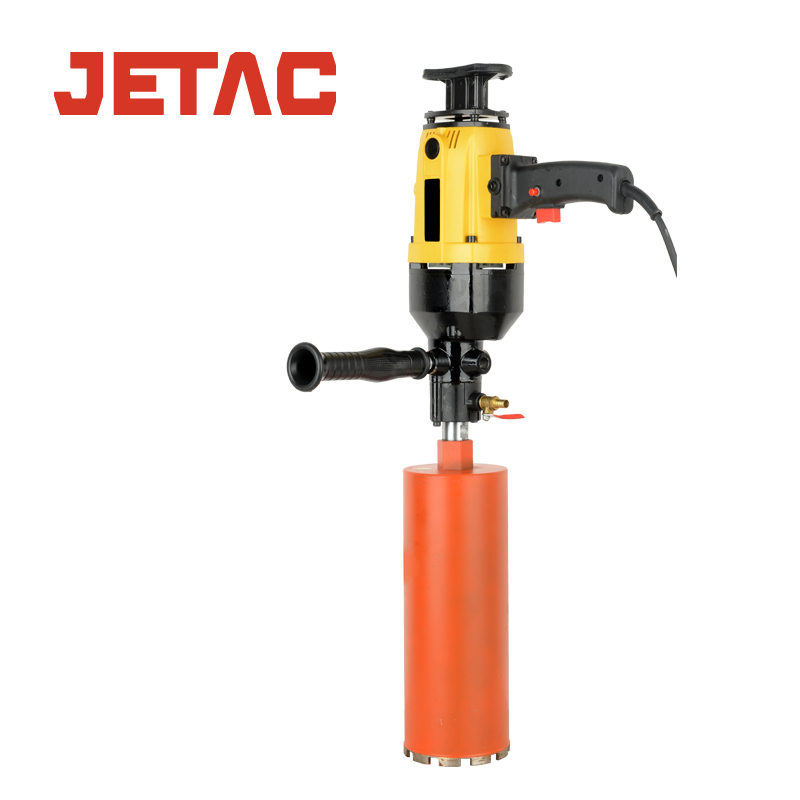

160mm Portable Diamond Concrete Core Cutting Machine

Insert Time：2023-01-25 16:07:50

Overview

Essential details

Place of Origin:
Jiangsu, China

Voltage:
220V

Model Number:
JLZ-160A

Weight:
6.2KG

Brand Name:
JETAC

Dimensions:
43CM*12CM*33CM

Drill Type:
Hand drill

Power Source:
Electric

Motor Type:
Brush Motor

Product name:
160mm Portable Diamond Concrete Core Cutting Machine

Water Seal:
No

Diameter:
160mm

Rated Power:
2380W

No Load Speed:
0~2000 r/min

Rated frequency:
50 HZ

Certificate:
CE/ 3C/ Utility Patent

Service:
Offer OEM / ODM

Supply Ability

Supply Ability
1000 Piece/Pieces per Day

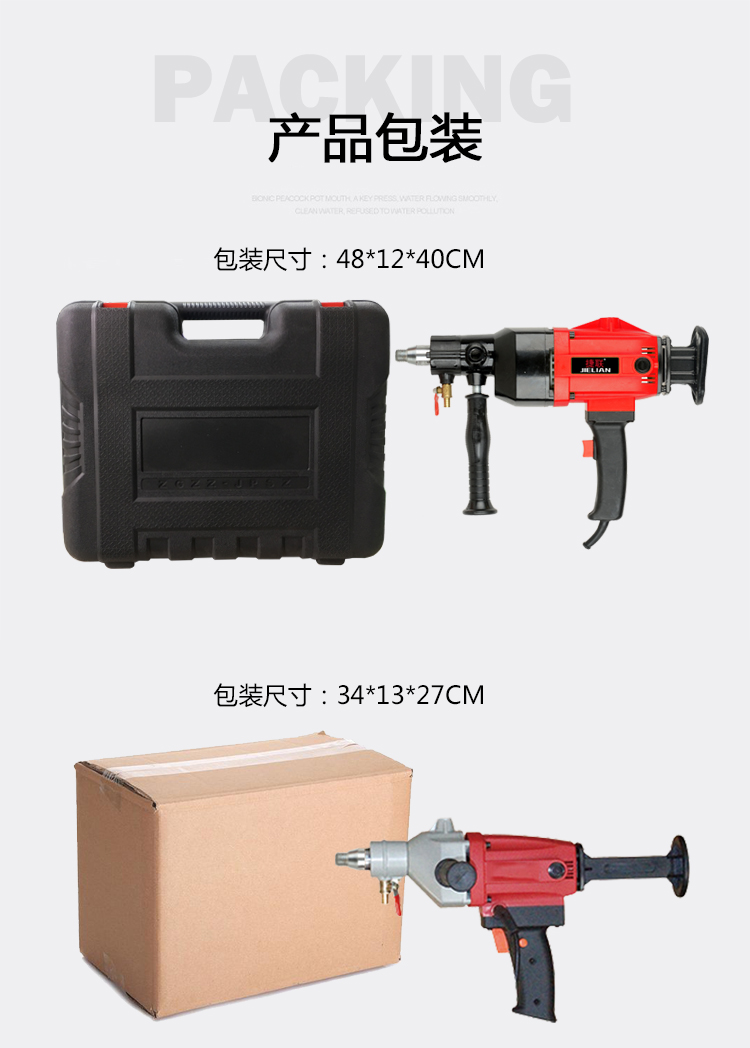

Packaging & delivery

Packaging Details

Wooden box +Carton

Port

shanghai

Lead time:
Quantity(sets) 1 - 5 6 - 100 >100
Lead time (days) 7 15 To be negotiated

00:00

00:10

Product Description

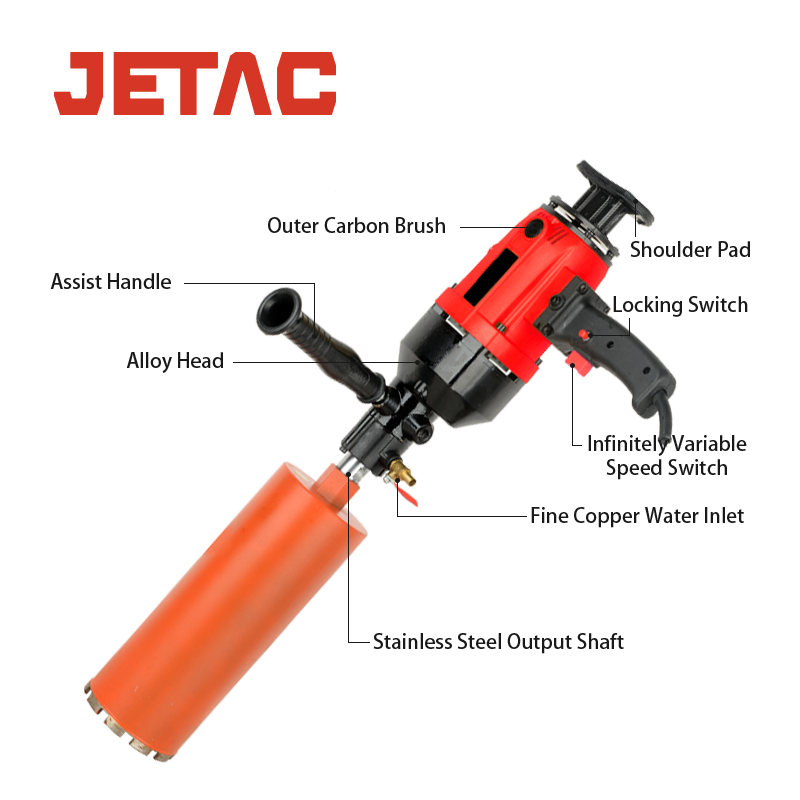

High Strength Durable Switch			Long-term durability test, repeatable continuous switch, longer life.
Encapsulating Shoulder Pad			Enhance the buffer, improve drilling efficiency.
Outer Carbon Brush			1)Motor will stop automatically after the carbon brush used up; 2)Outer design is convenient for inspection and replacement

Model: JLS-160A

Water Seal: No
Diameter: 160mm
Rated Voltage: 220V
Rated Power: 2380W
No Load Speed: 0~2000 r/min
G.W.: 6.2kg
Size	: 43*11*33cm

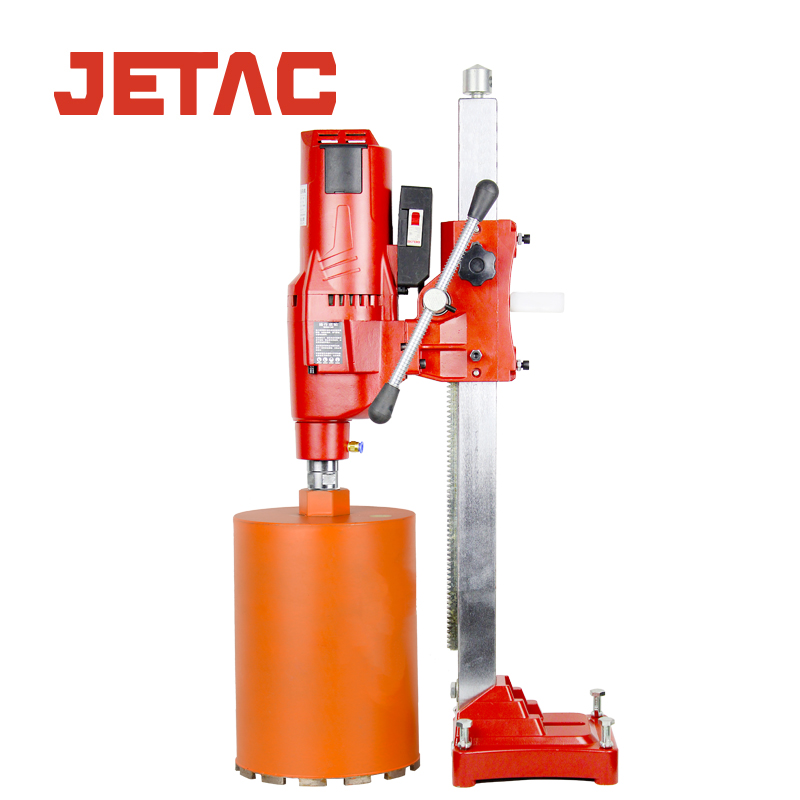

Model: JLS-160B

    Water Seal: No
    Diameter: 160mm
    Rated Voltage: 220V
    Rated Power: 2380W
    No Load Speed: 0~2000 r/min
    G.W.: 15kg
    Size: 19*48*80cm

Model: JLS - 235C

Rated Power: 4200W Rated Voltage: 220V
Rated Frequency: 50 HZ
No Load Speed: 880 r/min
Diameter: 235mm
G.W.: 22kg

Model: JLS - 235X

     Rated Power: 4200W      Rated Voltage: 220V
     Rated Frequency: 50 HZ
     No Load Speed: 880 r/min
     Diameter: 235mm
     G.W.: 24kg

Other Models: If any more needs, please kindly click  "Send Inquiry", we will be on service any time.

Model	JLS - 235C	JLS - 255C	JLS - 300C	JLS - 350C
Rated Power	4200W	4550W	5150W	5500W
Rated Voltage	220V	220V	220V	220V
Rated Frequency	50 HZ	50 HZ	50 HZ	50 HZ
No Load Speed	880 r/min	850 r/min	780 r/min	750 r/min
Diameter	235mm	255mm	300mm	350mm
G.W.	22kg	22kg	23kg	23kg

Package & Shipping

Mode of Shipment	By Courier/ Air	By Air/ Sea
Lead Time	3~7 Days	3~7 Days; 30 Days to Europe/ USA/ Canada; 5~15 Days to Southeast Asia;
Door to door delivery carrier including DHL, Fedex, EMS, UPS, TNT etc.

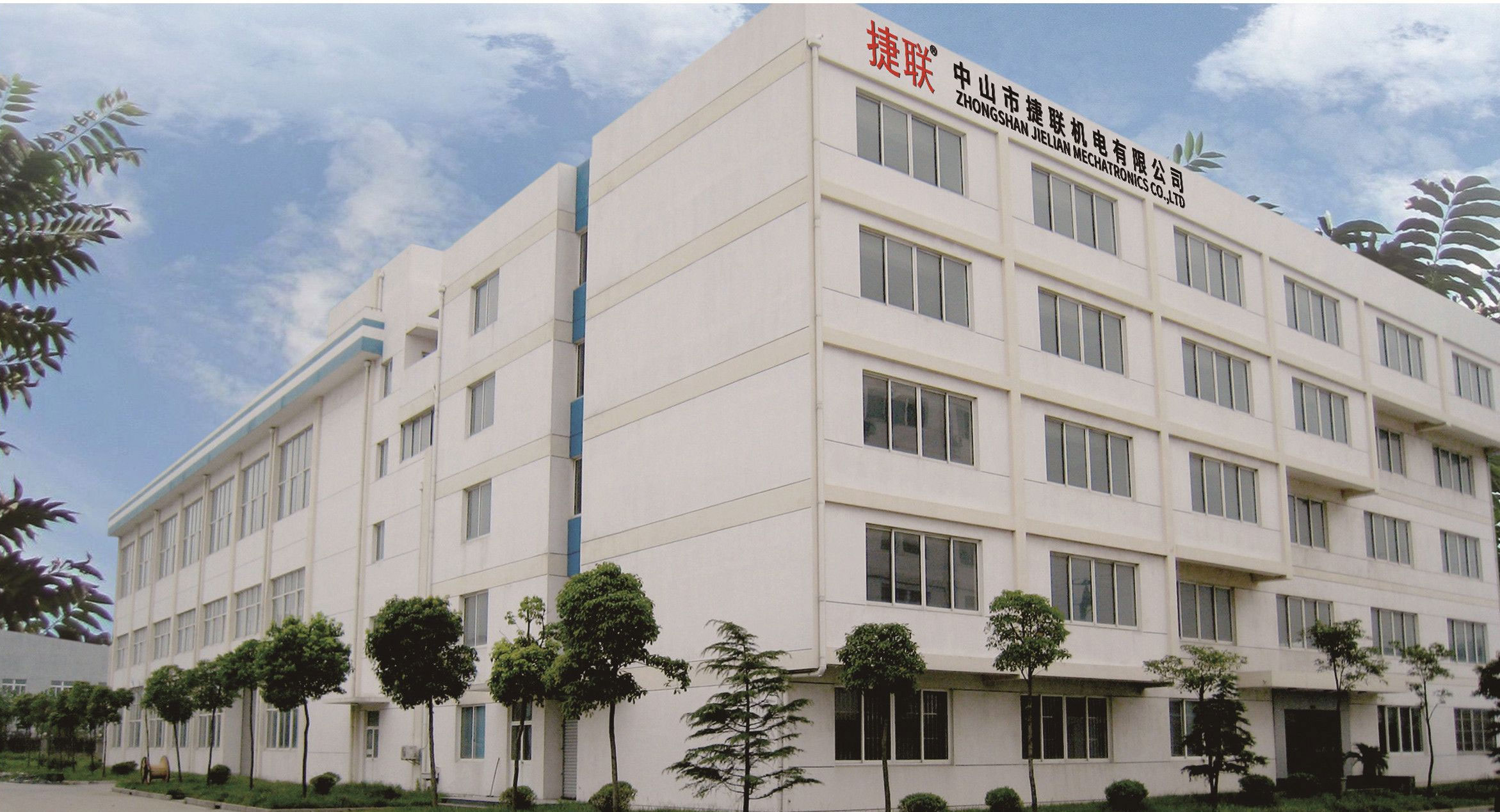

Company Profile

Wlecome to JETAC

Zhongshan Jielian Mechatronics Co., Ltd. was founded in 1997 with more than 20 years till now. Jetac is our trademark for overseas market.
Jetac has been committed to the domestic market sales in the past few years, from 2019 we began to expand our overseas business, and now our products are already on the market in he United States, France, Republic of Croatia, Netherlands, Bulgaria, Bangladesh and so on.
As a leading manufacturer and developer of hardware and electrical equipment and accessories in China, now we have 2 production centre and 5 large CNC processing centers, covering around 25 thousand square meters, with 300 employees, and 30 of them are technical R&D personnel. In addition to this, after continuous development, we also have national 3C certification, and a variety of patent certification such as  Reliable And Durable Dual Power Device, Transmission Device For Dual Power Motors, Convenient And Durable Cutting Device etc..
Main Business
The main business of Jetac is producing, researching, developing and selling power saws and tools such like Magnetic Drill Machine, Diamond Core Drilling Machine, Diamond Concrete Wall Cutting Machine, Diamond Hydraulic Wire Saw Machine, Demolition Hammer, some electric tools etc. and also some fitting accessories.
